Tibban Mud Puppy - Mud Cleaning Systems
|
|
|
| Tibban Mud Puppy Mud Puppy 255-2sc |
|
|

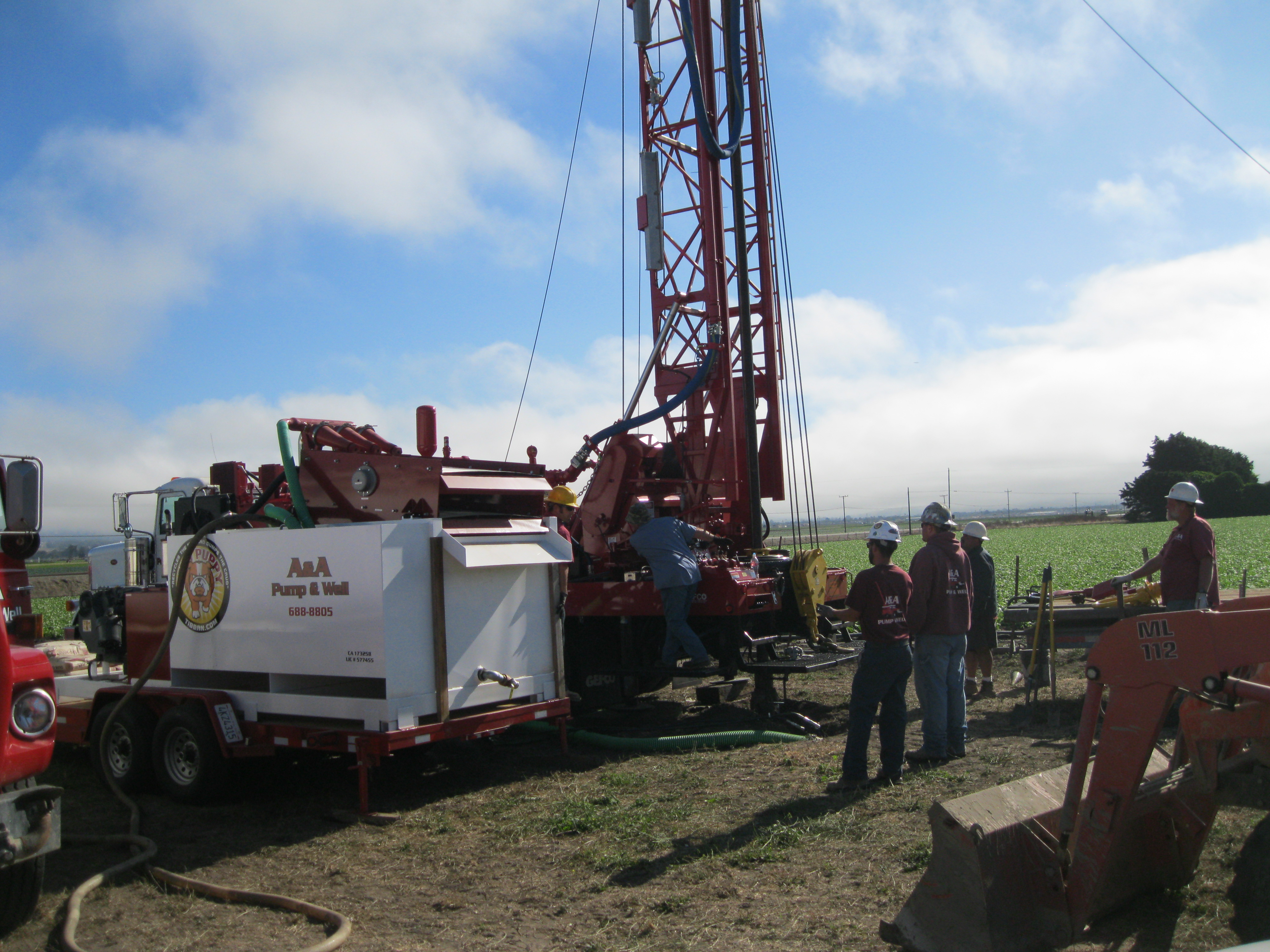

| Richard Alexander A&A Pump MP-255-2sc & New Soeedstar SS-22 HD |
|
|
|

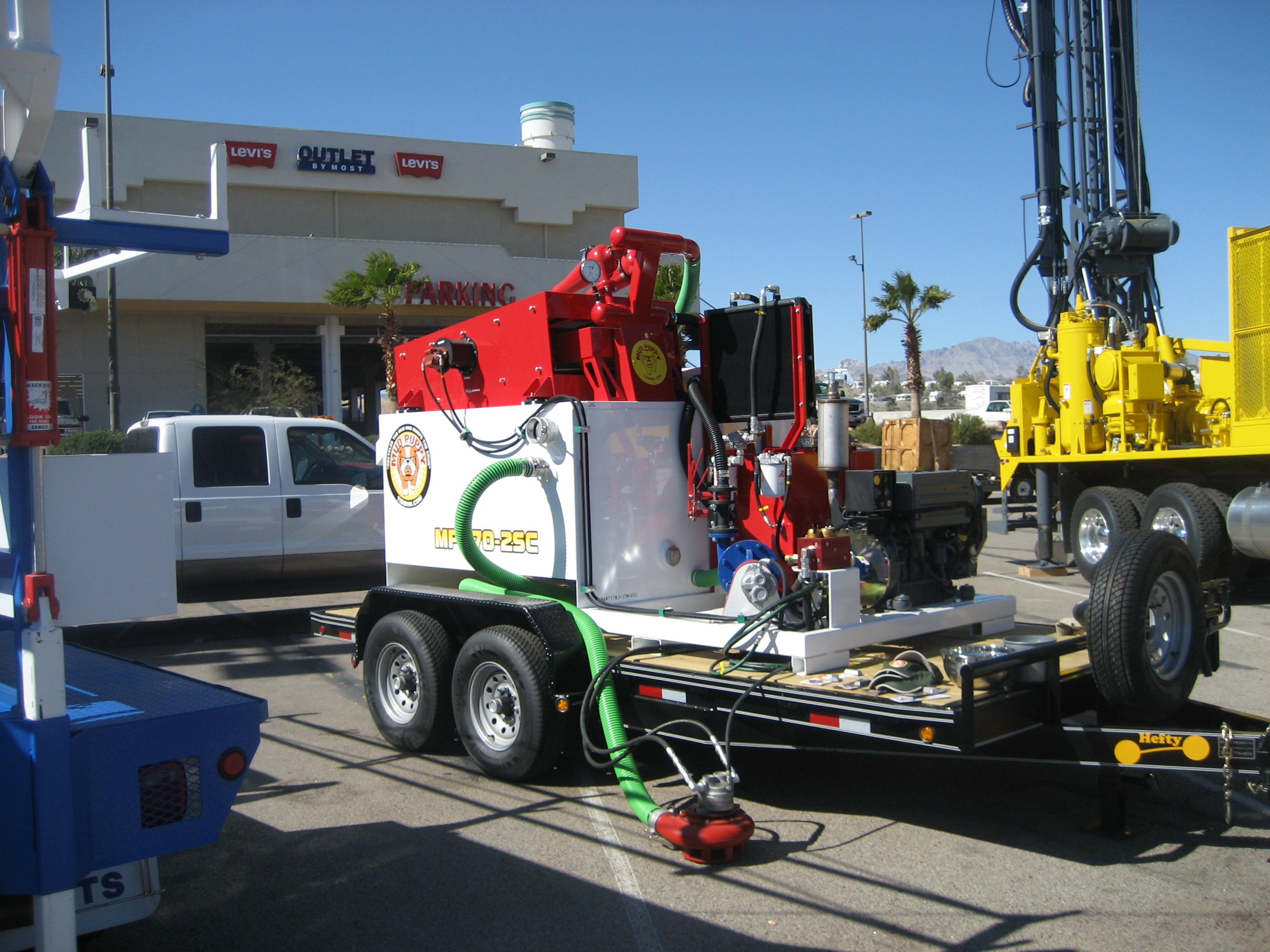

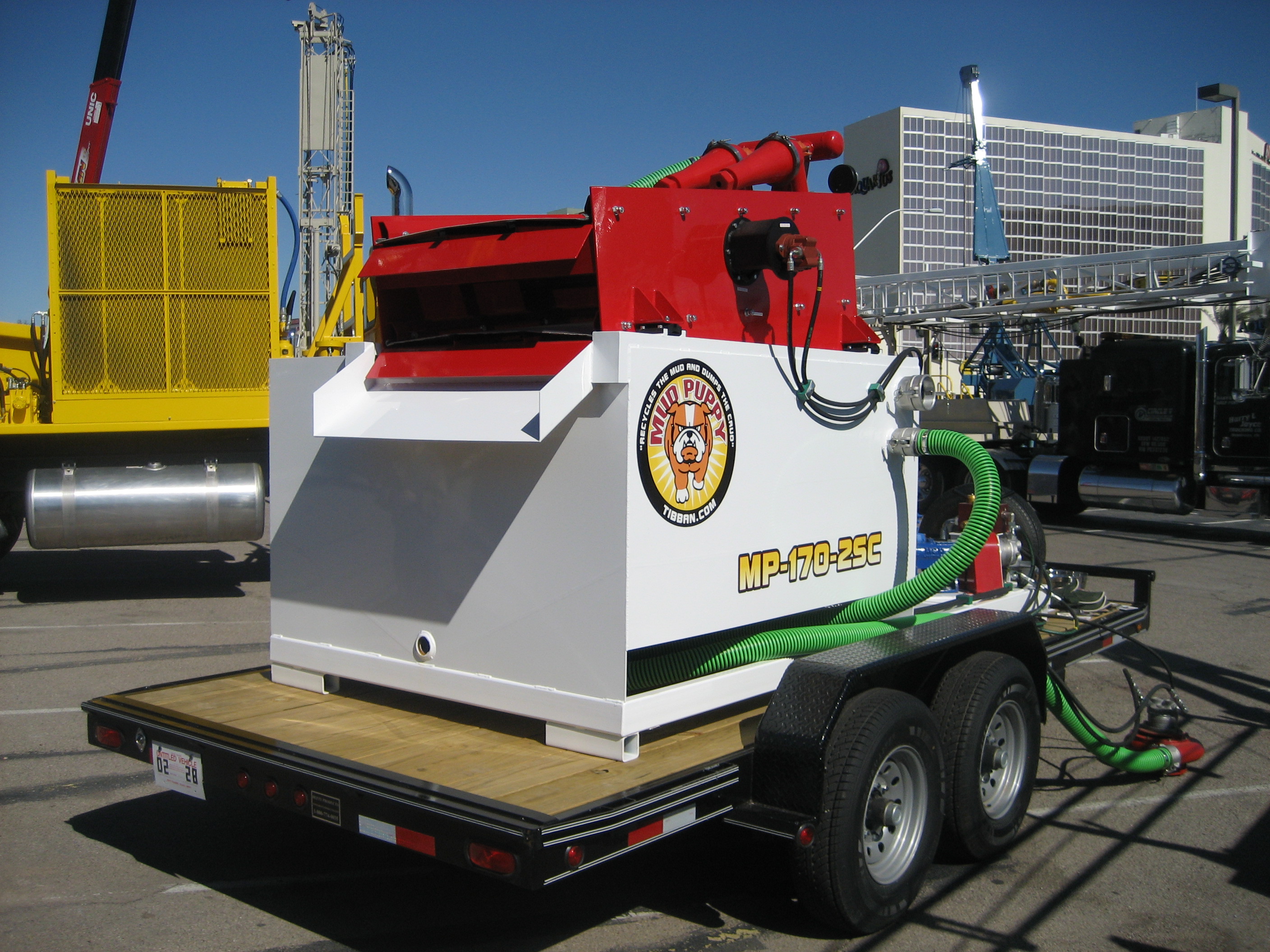

Mud Puppy, Model MP-170-2S, Picks up and cleans 350 gallons of mud per minute. Now has second fine mesh screen for
retaining desander cone discharge fluid, mounted above primary working screen. 600 gallon mud reservoir, with 2 compartments, sloped walls and sand
traps. 2 ea. 4" suction outlets. 75 HP Deutz Diesel, 4-cylinder
in-line. air cooled, Fullfills Tier III EPA emissions standards. Shaker:
3' x 5' single shaker screen / 20 mesh. Hyd driven, rotary motion. 1/4" HR Steel wall construction. Desander System:

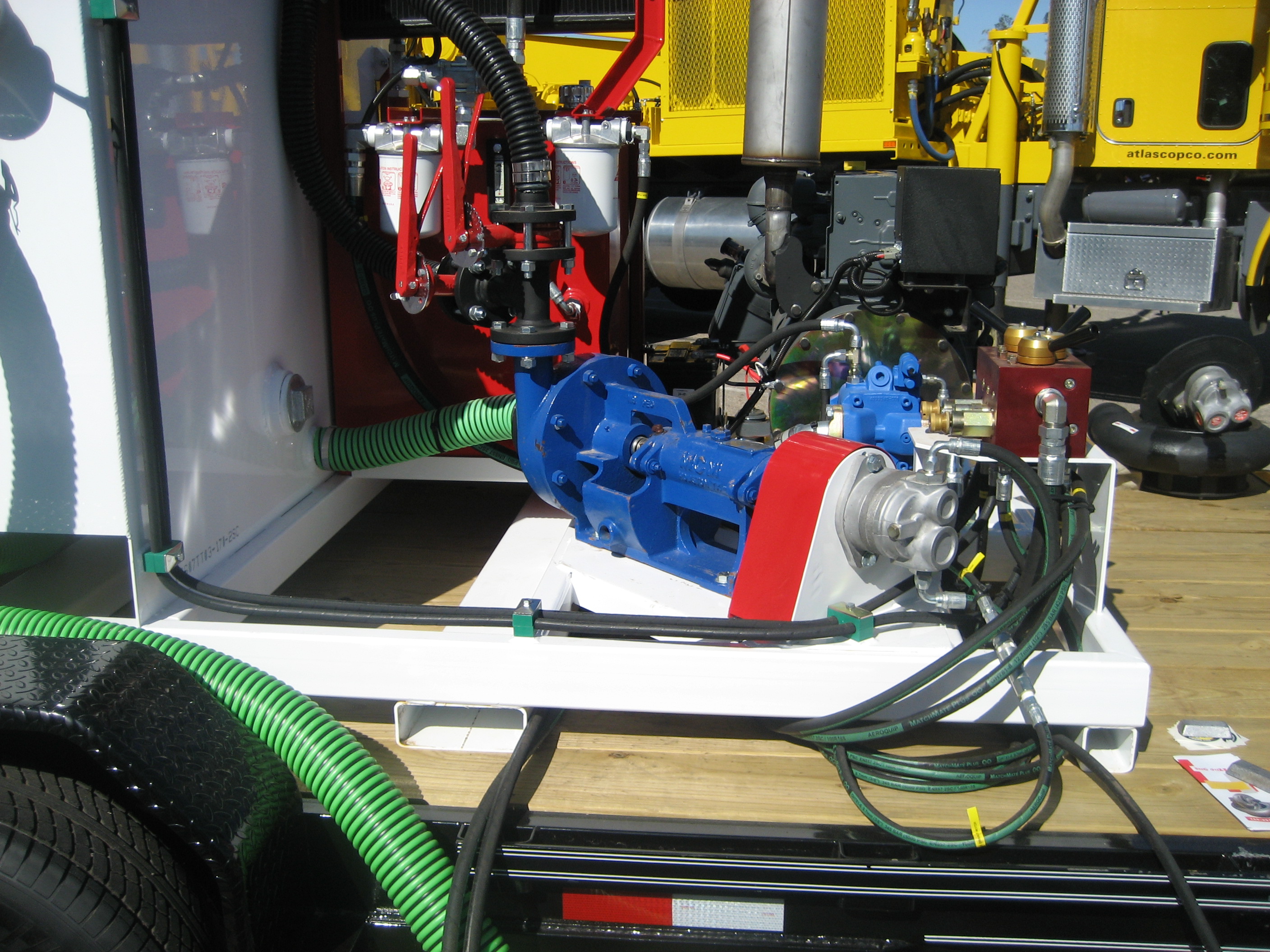

2" x 3" x 8.5" centrifugal mud pump, 2 ea. 5"
desander cones, Manifold pressure gauge, cleans 170 GPM, 15 Micron cut. Sand Guzzler mud
pick-up pump 10" centrifugal mud pump, 0 - 3000 RPM, 0-350 GPM, 20' of 3" hose. Closed loop hydraulics, variable displacement
pump, load sense control, 55 gallon hydraulic reservoir, with high capacity cooling system. Skid Mounted: Unit weighs ~3,900
pounds, is ~5'-6" wide, ~11' long, ~6'-6" tall. Price: $(Call me for current price), plus applicable tax / licenses, FOB California. Optional bolt-on
trailer kit: Add $2,900.00. Optrional up-grade to 3-desander
cones, Price TBD?
Mud Puppy Model MP-255-2SC Sand Guzzler
Picks up and cleans up-to 500 GPM, (normal use 375 GPM advised) Mud Reservoir:
1,000 gallon, 3/16" HR steel, 2 ea. 4" Sustion outlets, Sloped walls and sand traps. Power: 74 HP Deutz Diesel Model BF4L2011 air-cooled 4-cylinder in-line engine. Fullfills Tier
III EPA emissions regulations. Shaker: 4' x 5' Double - screen:
1@10 mesh bottom,and 1@100 mesh top, hydraulic driven
with constant speed control, 1/4" HR wall construction. Other screen
mesh available. Desander System: 2" x 3" x 8.5"
x 1-1/8 (Centrifugal) mud pump, now placed above fine screen & mounted above primary working screen and tank. Desander System: 2" x 3" x 8.5" x 1-1/8 (Centrifugal) mud pump, cones are placed above
fine screen & mounted above primary working screen and tank. Manifold
pressure gauge, 3 ea. 5" desander cones, 255 GPM, 15 Micron
cut. Pickup
Pump: 12" Sand Guzzler centrifugal mud pump Can take rocks
up to 2" diameter,0 - 500 GPM (see above:reccommended
70% of this volume for normal drilling) , 2-' of 3" hose. Hydraulic System: Closed
Center, Variable displacement pump, Load sense control, 55 gallon oil reservoir, High
capacity cooling system. Skid Mount: 7,000 pound total weight, 6'6"
x 14' x 7'-6" tall footprint. Fuel capacity: 25 gallons diesel runs approximately 20 hours. Note: This model does not have a mud pump for drilling purposes. Cost $(call me for current price)FOB CA, plus applicable tax & license. Optional trailer: $4,900.00 Optional delivery
~$1,900.00 (Within approx. 500 miles)
|
|
|
Model MP 255-100 Note* Due to potential confusion between the Sand Guzzler capabilities, and the
4 x 3 Series 250 centrifugal drilling mud pump capabilities, I have added in red letters some additional clarification to
my former posting.
~Same as MP 255-2sc, with
addition of 4 x 3 x 13 Mission Magnum 250 Series Centrifugal mud Pump max
output approximately 320 GPM, and Larger 270 HP Deutz Diesel Engine, model TCD2013L06, 6-cylinderin-line
Tier III engine. 1000 gallon tank, 3/16" HR Steel, The Sand Guzzler can pick up
to 500 GPM max mud handling with ~375 GPM reccomended normal use. The Sand Guzzler and the dual screen shaker is the mud handling system, and
is not to be confused with the drilling 4x3x 13 centrigugal mud pump. Cost: $(call me for current price), plus applicable
tax / licenses, FOB California Weight: 9,500 pounds, Foot print: 6'6" wide x 16' long x 8'3" tall.
MP-255-400 Same as MP-255-100 with larger Center-Line Tri-Plex Piston Mud Pump for drilling,
Drilling Pump produces ~450 Gallons per minute x ~400 PSI. Total Weight: 12,000 pounds. Foot Print:
6'6" wide x 22' long x 8'3" tall.
|
|
|
Model MP 85-2SC Pick up an dclean 250 GPM, 450 gallon mud reservoir
with 4" Suction Outlets, Sloped walls and sand traps, Deutz Diesel 75HP, BF4L2011, air cooled 4-cylinder, 2'
x3' Double Screen Shaker, with 10 mesh bottom and 100 mesh top, Sand Guzzler
10" 0-350 GPM, Desander System, with 2" x 3" x 8.5" x
Centrifugal Pump, and 2 ea. 5" Desander cones170 GPM, 15 Micron cut Cost: $(call me for current price) , Plus applicable
tax / licenses, FOB California
Tibban Sand Guzzler 10"Sand
Guzzler: 0-350 GPM, 3" diameter hose, Hydraulic
motor - RPm: Max 3000 RPM, Hydraulic motor - PSI: Max 3000 PSI, Hydraulic
flow rate: Max 20 GPM, Choice of Cast Iron or Aluminum Construction, Cast
Iron weight = 95# Aluminum weight = 50# 12" Sand Guzzler 0-500
GPM, 4" diameter hose, Hydraulic motor - RPm: Max 3000 RPM, Hydraulic
motor - PSI: Max 3000 PSI, Hydraulic flow rate: Max 24 GPM, Choice
of Cast Iron, Aluminum, or Stainless Steel Construction, Cast Iron weight = 130# Aluminum weight = 65# Stainless Steel Weight: 135#
|
|
|
Note****
Due to continued design improvement by Tibban Manufacturing, the Mud Puppy may have slightly
different components than those listed here.
Prices are subject to change without notice, however we will be glad to provide a current quote, with
up-to-date prices, and latest design changes.
Jon Newsom
|
|
|
|
