Used 2005 SS-50K
The rig has only
2,514 actual hours since new!!! Checked 6-10-10
Compressor
has only 169 total running hours.
Truck miles actual from hub-meter
is 7,844 miles, odometer shows more because PTO adds miles.
This rig is a like-new top-head drive rig with 50,000 pounds of top-head pullback,
and 50,000 pounds of main winch hoisting capacity!

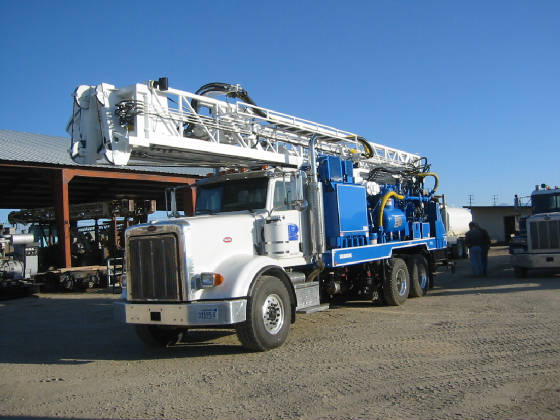

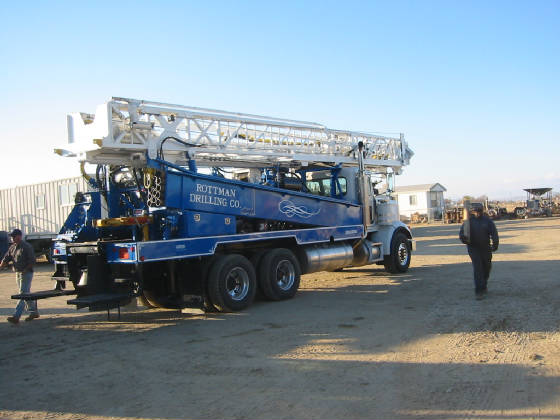

The rig is mounted on
a 2005 model Peterbilt truck, powered by a Cat C-15 (525 HP) truck engine, via PTO.
The rig has a deck mounted Sullair
air compressor with 1000 CFM at 350 PSI, with an air-clutch.
Rig truck has a "Jake"
brake, 22,000 # front axle, and tandem rear axle with 46,000 # rating. Fuller 18-speed transmission, two fuel tanks,
air-conditioned cab, and more.
Top head rotary has 70,000 inch pounds
(5,833 foot pounds) rotary torque, 0 to 120 rpm, and a 2.5" ID, and is retractable in rear of mast for running pipe and
casing. The top-head has 29 foot of travel!
Rig is equipped with a
6 piece rod carousel, that holds 6 joints of 4.5" x 20' flush joint drill pipe.
The rig is equipped with 50,000 pounds of top-head pullback, and 25,000 pounds of pulldown.
Rig is equipped with two heavy duty winches: One 25,000 pound single line pull winch
for pulling pipe through the jib sheives, and one heavy duty full-time 50,000 pound winch with two lines. Both winches are
hydraulically powered for power up and down operation.
Rig has an optional hammer
oil lubricator, and a 4 x 3 centrifugal mud pump mounted below deck, an 18 GPM water injection pump, single rod loader, retracting
breakout table with sliding rod holding wrench, breakout wrench with hydraulic ram, pipe spinner, pipe carrying
trough, lockable control panel, lights for night time drilling, remote control for jib winch line functions, and much more.
This rig is in very good condition, and is in near like-new condition.
Price is $520,000.00 FOB Southern California, subject to pre-sale,
