SS-15 III

Table drive, or optional tophead drive machine. The standard drill has a double-drum drawworks for pipe & casing handling, and there is an optional sandline available.

Both the kelly hoist, and the casing hoist have 15,000# single line pull, or 60,000# w/ 4 lines. These can also be set up for two part or three part lines.

There are many compressor, and / or mud pump options available.

The table drive blue drill below has 2 ea. 5 x 6-1/4 piston mud pumps, a 10" retracting table, 5" x 24' kelly, sandline hoist, pipe trough, air clutches, PTO drive from Cat diesel truck engine.

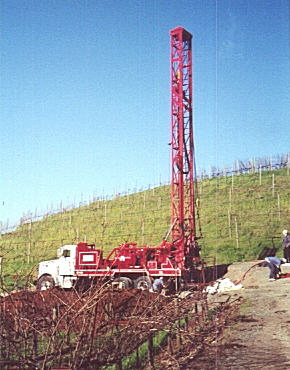

The red drill shown below has a 1000 CFM x 350 PSI Sulliar compressor, and a Mission Magnum 3 x 4 centrifugal mud pump, hammer oiler and water injection pump.

Our standard truck is a Peterbilt Model 357, powered by a Cat 525 HP C-15 engine, for high pressure air or air/mud combination, and 435 HP for the mud only rig.
